Descripción

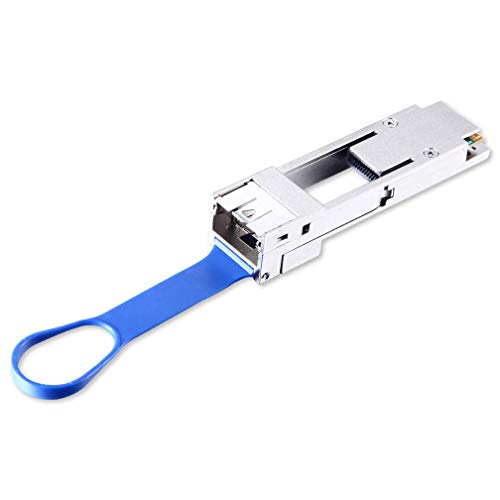

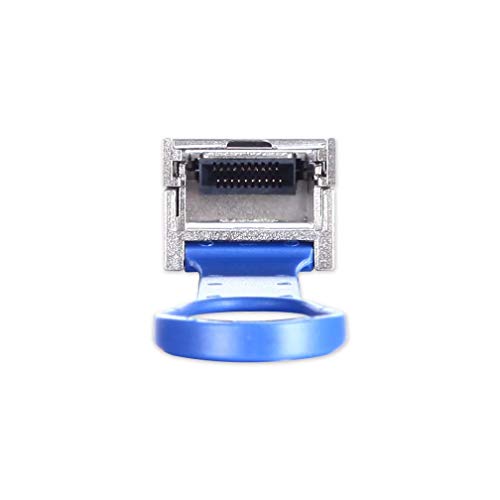

The 10Gtek QSFP to SFP Adapter (QSA) Module offers 10 Gigabit Ethernet connectivity for QSFP-only platforms.It allows smooth and cost-effective migration to 40 Gigabit Ethernet by providing an option to use lower-speed SFP modules in empty QSFP ports or when the other end of the network is running at lower speeds.
The QSA Module interoperates with all major optical modules and direct attached copper cable vendors.Its design assures minimum loss on the conversion path between the QSFP cage and the SFP receptacle. The high-speed data channel of the SFP receptacle is connected to lane 1 of the QSFP connector. The three remaining channels on the QSFP connector are not connected. With this adapter, you have the flexibility to use any SFP module or cable to connect to a lower-speed port on the other end of the network. This flexibility allows a cost-effective transition to 40 Gigabit Ethernet by maximizing the use of high-density 40 Gigabit Ethernet QSFP platforms. This adapter supports all SFP optics and cable reaches. Compatible Switch Models and SFP Modules.
Features
Trouble-free installation and network bring-up
Compliant to industry standards: SFF-8665
Compliant to industry standards: SFF-8432
Precision process control for minimization of pair-to-pair skew
1 independent duplex channels operating at 10Gbps data rates
All-metal housing for superior EMI performance
100ohm differential impedance system
Operating case temperature: -20 to 85℃
Low insertion loss
Low crosstalk
Secure latching mechanism
RoHS compliant
Compatible with RoHS
Single 3.3V power supply
Applications
Low EMI radiation Switches, servers and routers
Telecommunication and wireless infrastructure
Test and measurement equipment
Networked storage systems
Data Center networks
Storage area networks
Haz clic aquí para comprobar si este producto es compatible con tu modelo
【Wide Compatibility】This adapter supports all SFP+ optics and cable reaches, such as SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-ZR, 10G SFP+ Copper Cable and 10G SFP+ Active Optical Cable. I2C read port information comes from SFP port module, not QSA Module. So it can be used on any brand switches, servers and routers with QSFP port, no compatibility restrictions.
【Smooth Speed Migration】10Gtek QSA adapter Module offers 10 Gigabit Ethernet connectivity for QSFP-only platforms. It allows smooth and cost-effective migration to 40 Gigabit Ethernet by providing an option to use lower-speed.
【Convenient and Flexible Use】With QSA adapter, you can flexibly use any SFP+ module or cable to connect to a lower-speed port on the other end of the network with low insertion loss and crosstalk. Plug and play, without any setup.
【QSA vs QSFP Breakout Cable】Not all the 40G cards and switches can be split into 4x 10Gb mode, for example, the Mellanox QSFP cards do not support the QSFP to SFP+ breakout, but they support QSA. And QSA can be used for longer transmission distances than QSFP Breakout Cable.
【What You Get】1x cost-effective QSFP+ to SFP+ QSA adapter. Backed by 10Gtek 30 Days Free-returned, 3-Year Free Warranty and Lifetime Technology Support. 10Gtek is a manufacturer of DAC/Transceiver/AOC/NIC/Media Converter, customized service also is available.
